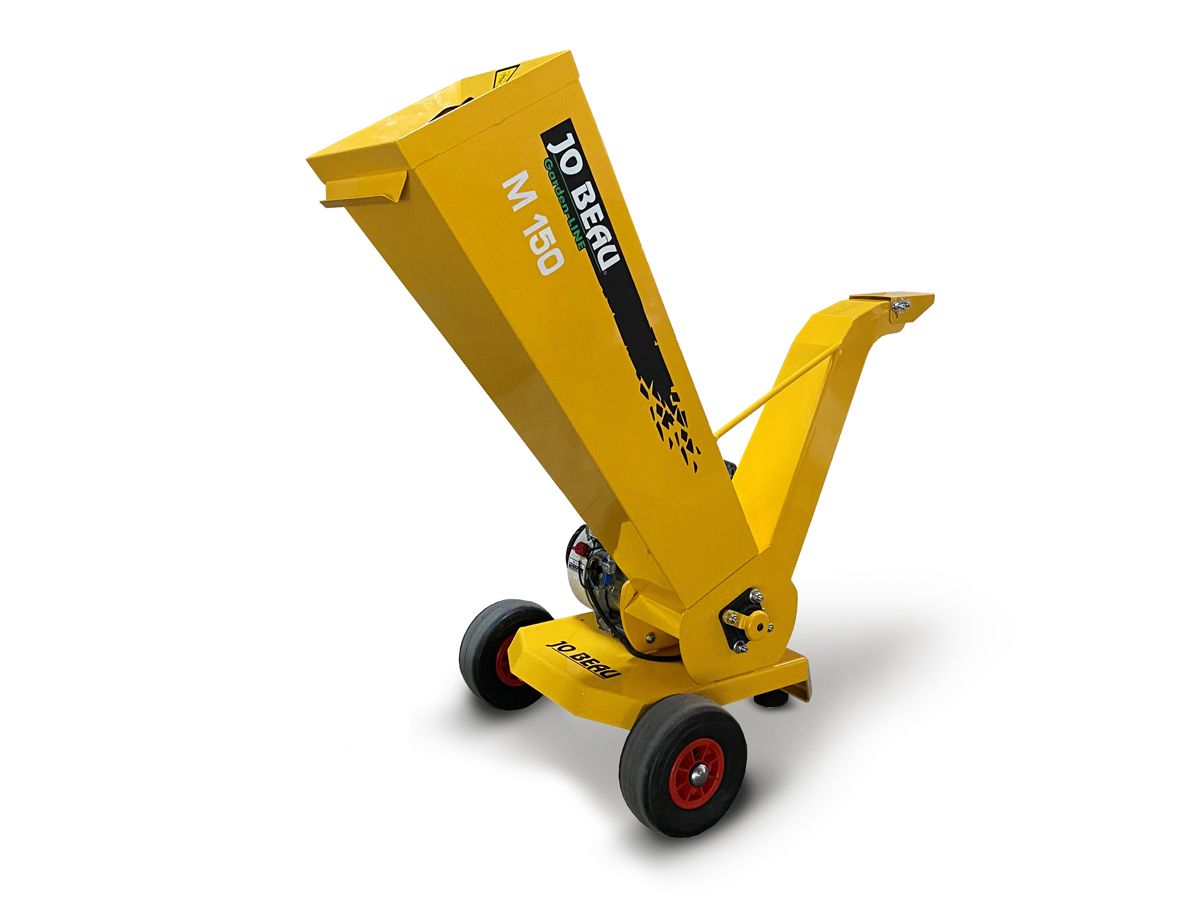

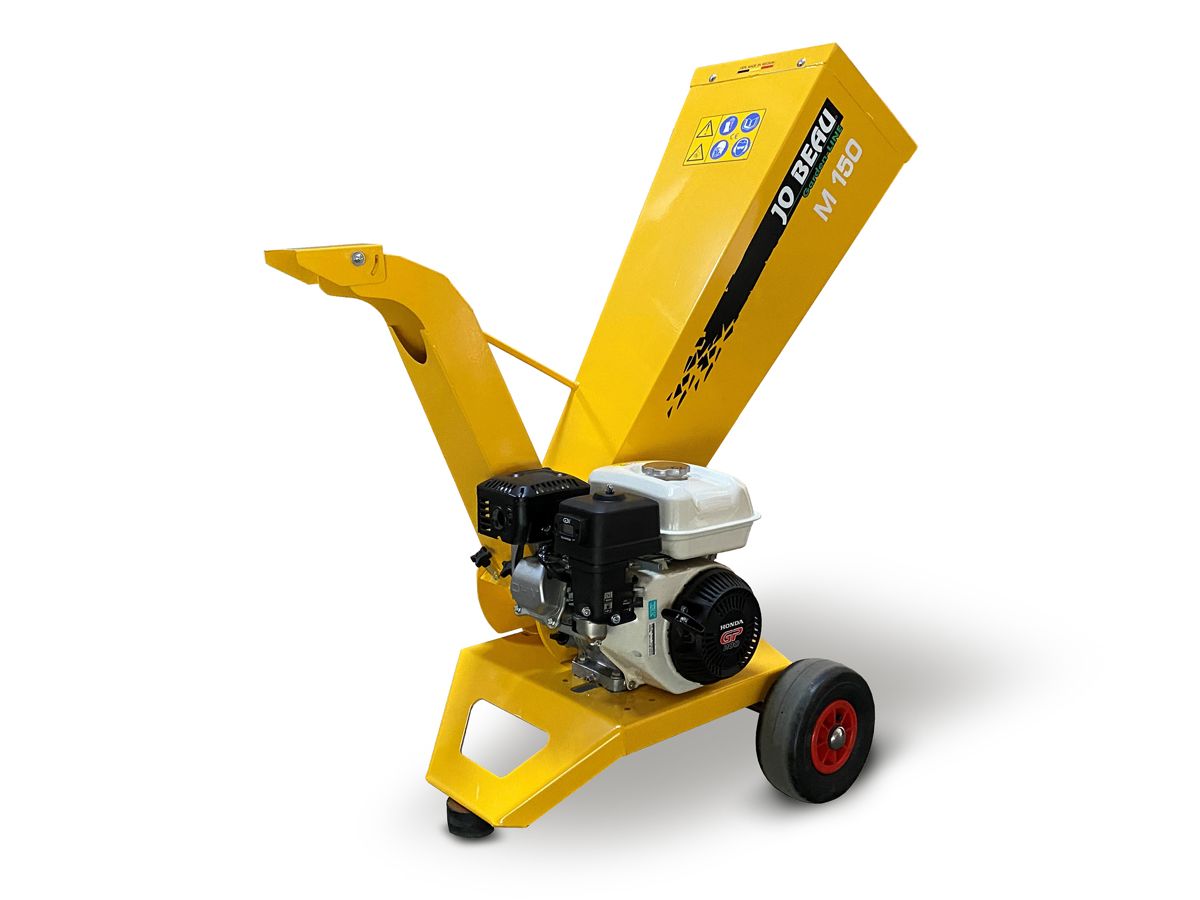

M150 Garden Line wood chipper

Garden-line | gasoline wood chipper
#003627

  • Power 5,8 Hp
  • Chipperable timberdiameter 50 mm (1.97 In)
  • Feed height 1050 mm (41.34 In)
  • Width 660 mm (25.98 In)

Description

The M150 Garden-line wood chipper is a compact, light but robust chipper driven by a powerful Honda petrol engine. This high quality shredder has a maximum recommended branch diameter of approximately 5 cm and a capacity of approximately 1.4 m³ wood chips per hour. The Jo Beau® drum technology™ ensures that the branches are automatically pulled into the machine and the beautiful chips are catapulted to the top.

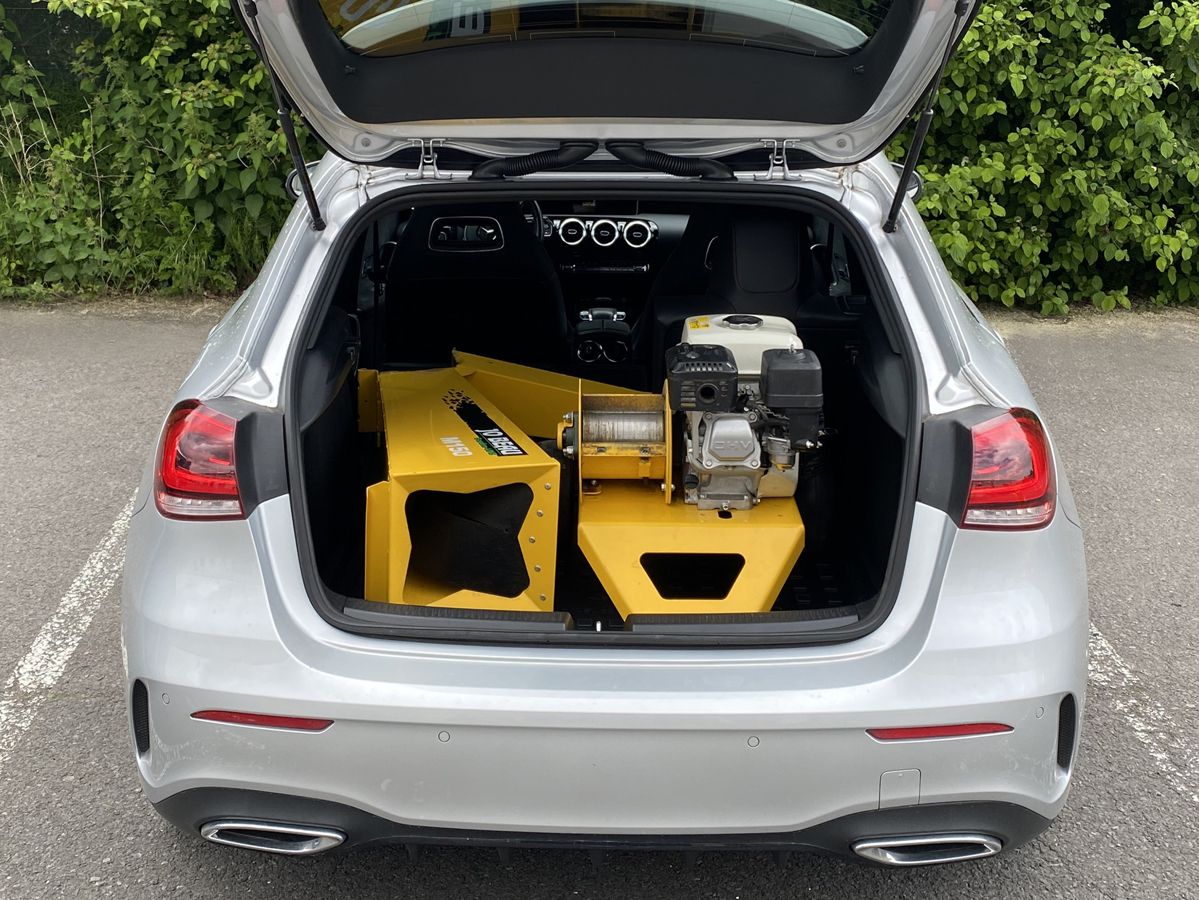

The low ergonomic feed-in height of 105cm (41.34 In) and high powerful ejection, makes the Jo Beau M150 ideal for the private gardener. The wood chipper can be dismantled in a jiffy to a compact volume that allows it to be easily transported in a car boot.
The spacious feed-in opening of the M150 is equipped with a rubber splash guard to ensure safety.

By simply open the feed hopper, a large opening to the knife drum housing is created. This makes it easy to access the knives for disassembly or assembly for grinding.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

✓ Adapter ergonomic inlet height
✓ Very easy handling by big air tires
✓ Maintenance friendly
✓ Smooth machining of branches
✓ Hinged infeed hopper for an easy maintenance
✓ Unique Jo Beau drum technology™
✓ Ejects chips upwards✓ Robust and light
✓ Belgian Premium quality

Technical specifications

Performance

Max. recommended diameter
50 mm (1.97 In)
Capacity chips (average)
1,4 m³/h (49,44 ft³/h)
Processing speed (average)
25 m/min (82 ft/min)

Engine

Brand & type
Honda GP200 - 1 cyl. 4-stroke
Power
4,3 kW (5,8 Hp)
Drive
Petrol engine
Consumption
1,7 L/h - 3600 RPM
Noise level Lw(A)
dB(A)

Design

Dimensions (LxWxH)
1080 x 660 x 1200 mm (42.52 In)
Feed height
1050 mm (41.34 In)
Feed intake opening (LxW)
Cloverleaf shape
Weight
57 kg (125.66 Lbs)
Chipper Technology
Jo Beau® drumtechnology™
Chassis / Infeed hopper / Ejector chute
Powder-coated steel
Knives
2 hardened, reversable blades
Counter blade
1 (2x reversable)
Drum transmission
Directly on engine shaft

Options

Maintenance alarm / Hour counter
Large wheels
